Simplify Daily Inspections in the Field

 The TLV Pocket Trapman® helps technicians quickly inspect steam traps, valves, bearings, and other critical equipment with one portable, easy-to-use solution. Automatically diagnose equipment performance, tag inspection locations, and capture custom data — all within a streamlined workflow built for efficiency in the field. Intrinsically safe and certified for use in hazardous environments.

  • Automatically diagnose steam trap and valve operation in real time

  • Capture, organize, and share inspection data from a single device

  • Certified for safe operation in hazardous and industrial environments

Learn More

Five Core Functions

Asset Tagging
Temperature Measurement
Audio Monitoring
Vibration Measurement
Mobil App Integration

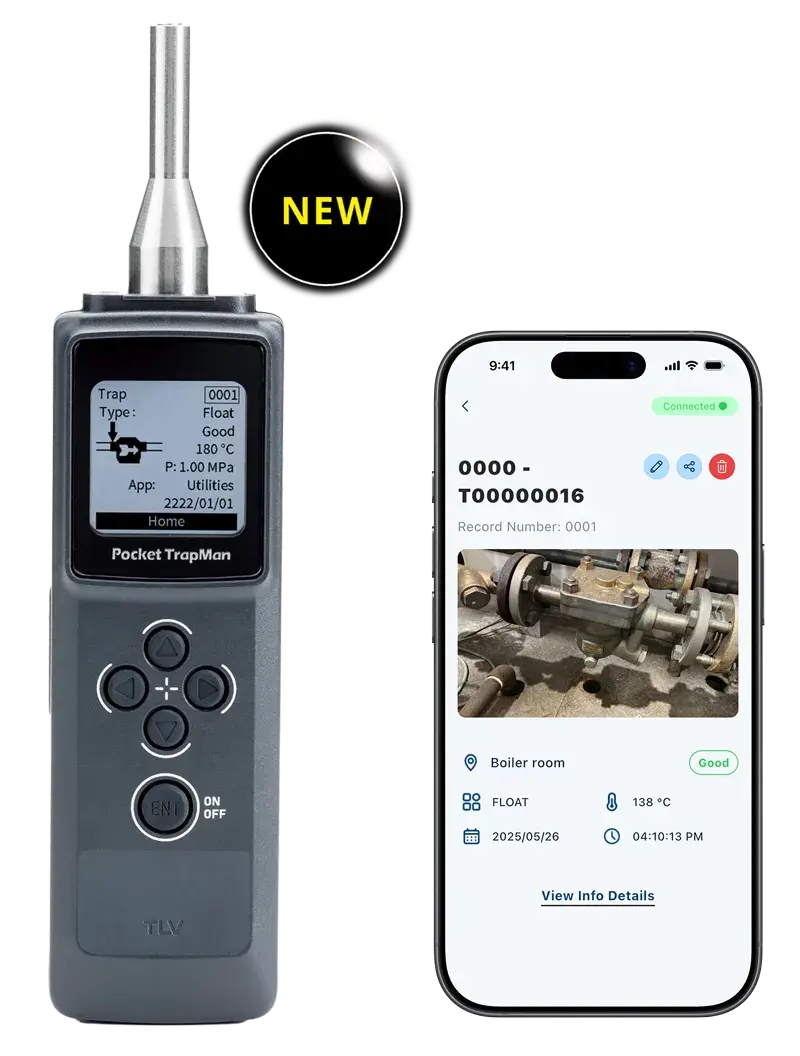

PT3_CMR_EN

Pocket TrapMan® PT3 Specifications

The TLV Pocket TrapMan® PT3 is a portable, intrinsically safe inspection device designed for steam traps, valves, bearings, and rotating equipment. It combines temperature, ultrasonic vibration, and audio monitoring into one handheld tool for daily maintenance and condition monitoring.

Measurement Capabilities

  • Surface Temperature Range: -40°C to 350°C

  • Ultrasonic Shock Pulse Frequency: 32 kHz

  • Vibration Measurements:

    • Vibration acceleration

    • AVG / PEAK vibration levels

    • Crest Factor (CF)

  • Audio Monitoring:

    • Real-time listening via Bluetooth® earphones

    • Digital auscultation capability

  • Steam trap and valve condition auto-diagnosis

Connectivity & Data Management
  • Bluetooth® 5.0 connectivity
  • RFID support: LF 125 kHz
  • QR code compatibility through CMRecorder® app
  • Mobile app integration for:
    • Report creation
    • Data export & sharing
    • Historical record management
    • CSV and PDF reporting
Environmental & Durability Specifications
  • Operating Temperature:
    • -10°C to 50°C
    • Charging: 0°C to 40°C
  • Protection Rating: IP54
  • Drop Resistance:
    • Equivalent to JIS C60068-2-31
    • 100 cm concrete drop resistance
  • Probe Durability:
    • Approx. 400,000 cycles
Explosion-Proof & Safety Certifications
  • Intrinsically Safe Design
  • Regional certifications include:
    • ATEX
    • IECEx
    • UL / cUL
    • NEPSI
    • Ex ic IIB T3 Gc
Battery & Runtime
  • Battery Type: Lithium-ion
  • Capacity: 1000 mAh
  • Charging: USB Type-C / 5V
  • Continuous Operating Time:
    • Up to 24 hours (without front light)
Physical Specifications
  • Dimensions:
    • Approx. 51 × 218 × 35 mm
  • Weight:
    • Approx. 250 g
Supported Platforms
  • iOS 14 or later
  • Android 8.1 or later
  • Languages:
    • English
    • French
    • German
    • Spanish
    • Portuguese
    • Chinese
    • Korean
    • Japanese
